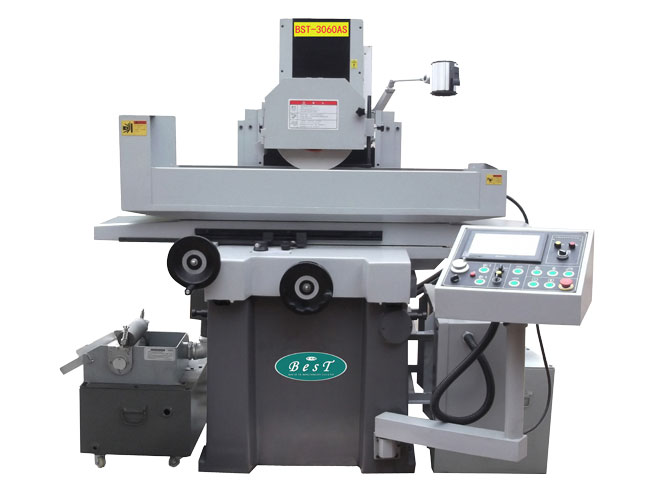

Spec. of BST-3060AS

Maximum stroke (width x length)

320×640mm

Distance from the working table to the center of the spindle

580mm

Grinding area

300×600mm

Running speed of the table

1～25m/min

Machining precision working accuracy

300:0.005mm

Surface roughness

Ra≤0.25μm

Tank horsepower

1.5KW/2HP

Scale of hand wheel for cross feed, 1rev.

0.01/0.1

Scale of hand wheel for cross feed, 1gra.

0.001/0.01mm

Scale of hand wheel for vertical feed, 1rev.

1mm

Scale of hand wheel for vertical feed, 1gra.

0.005mm

Grinding wheel size (outer diameter × width × inner diameter)

355×40×127mm

Spindle motor

5.5KW/7.5HP

Speed of grinding wheel, 50/60HZ

50HZ  1450R.P.M

Gross Weight

3900Kg

Packing Size

2900×2800×2280mm
