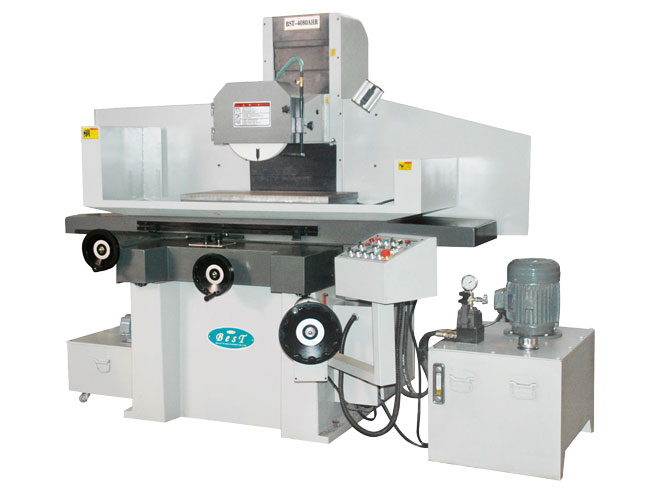

BST-4080AHR
Technical specification sheet
Items | Specification |
Maximum stroke (width x length) | 420×840mm |
Distance from the working table to the center of the spindle | 700mm |
Grinding area | 400×800mm |
Running speed of the table | 5～25m/min |
Surface roughness | Ra≤0.25μm |
Tank horsepower | 1.5KW/2HP |
Scale of hand wheel for cross feed, 1rev. | 5mm |
Scale of hand wheel for cross feed, 1gra. | 0.02mm |
Scale of hand wheel for vertical feed, 1rev. | 2mm |
Scale of hand wheel for vertical feed, 1gra. | 0.01mm |
Grinding wheel size(outer diameter × width × inner diameter) | 355×（20～40）×127mm |
Spindle motor | 3.7KW/5HP |
Speed of grinding wheel, 50/60HZ | 50HZ 1450R.P.M |
Gross Weight | 3000Kg |
Packing size | 2360×2190×2300mm |
