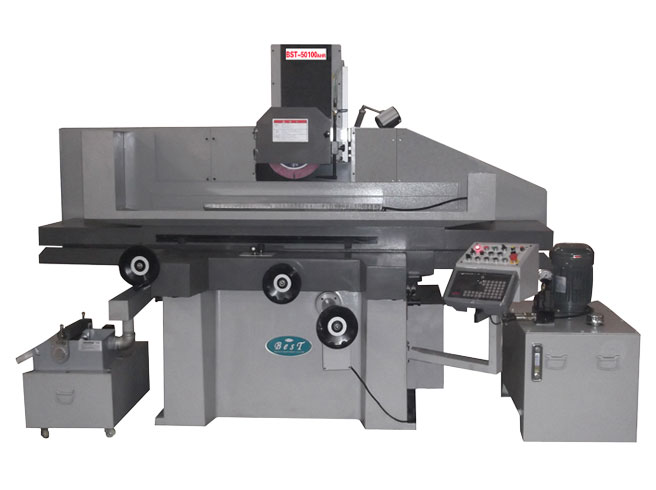

BST-50100AHR
Technical specification sheet
Items | Specification |
Maximum stroke (width x length) | 530×1040mm |
Distance from the working table to the center of the spindle | 680mm |
Grinding area | 500×1000mm |
Running speed of the table | 1～25m/min |
Machining precision working accuracy | 300:0.005mm |
Surface roughness | Ra≤0.25μm |
Tank horsepower | 2.2KW/3HP |
Scale of hand wheel for cross feed, 1rev. | 5mm |
Scale of hand wheel for cross feed, 1gra. | 0.02mm |
Scale of hand wheel for vertical feed, 1rev. | 1mm |
Scale of hand wheel for vertical feed, 1gra. | 0.005mm |
Grinding wheel size(outer diameter × width × inner diameter) | 355×40×127mm |
Spindle motor | 5.5KW/7.5HP |
Speed of grinding wheel, 50/60HZ | 50HZ 1450R.P.M |
Gross Weight | 4100Kg |
Packing Size | 3060×2360×2300mm |
