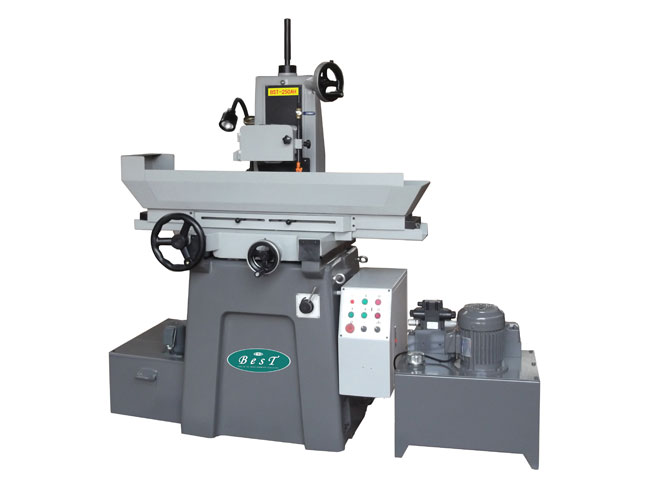

Spec. of BST-250AH

Maximum stroke (width x length)

200×460mm

Distance from the working table to the center of the spindle

390mm

Grinding area

250×510mm

Machining precision working accuracy

300:0.005mm

Surface roughness

Ra≤0.25μm

Scale of hand wheel for cross feed, 1rev.

5mm

Scale of hand wheel for cross feed, 1gra.

0.02mm

Scale of hand wheel for vertical feed, 1rev.

1mm

Scale of hand wheel for vertical feed, 1gra.

0.005mm

Grinding wheel size(outer diameter × width × inner diameter)

180×（3～13）×127mm

Spindle motor

2HP/1.5KW

Speed of grinding wheel, 50/60HZ

50HZ  2800R.P.M

Hydraulic drive motor

2HP

back and front driving motor

40W

Gross Weight

1000Kg

Packing Size

1480×1500×2090mm
