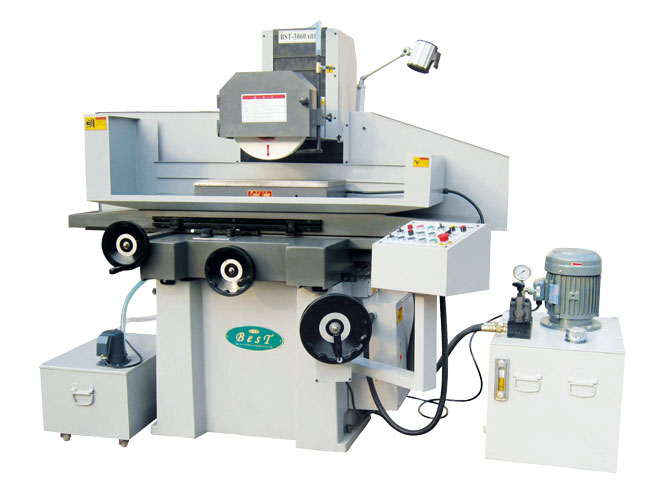

BST-3060AHR
Technical specification sheet
Items | Specification |
Maximum stroke (width x length) | 320×640mm |
Distance from the working table to the center of the spindle | 580mm |
Grinding area | 300×600mm |
Running speed of the table | 5～25m/min |
Machining precision working accuracy | 300:0.005mm |
Surface roughness | Ra≤0.25μm |
Tank horsepower | 1.5KW/2HP |
Scale of hand wheel for cross feed, 1rev. | 5mm |
Scale of hand wheel for cross feed, 1gra. | 0.02mm |
Scale of hand wheel for vertical feed, 1rev. | 2mm |
Scale of hand wheel for vertical feed, 1gra. | 0.01mm |
Grinding wheel size(outer diameter × width × inner diameter) | 355×（20～40）×127mm |
Spindle motor | 3.7KW/5HP |
Speed of grinding wheel, 50/60HZ | 50HZ 1450R.P.M |
Gross Weight | 2100Kg |
Packing Size | 2040×1830×2100mm |
